Disconnecting The Front Suspension Components, Continued

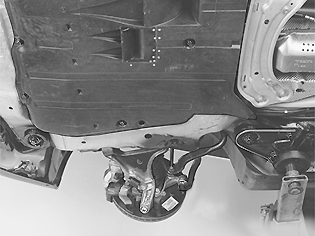

Fig 1: Front End Components
GLL109858Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:

Clean the exposed threads outside the nut. Spray using rust solvent before removing the nut.

Remove the nut for the ball joint and control arm. Counterhold the ball joint pinion so that the boot does not twist. Use a Torx wrench.
