Installing The Components Engine Compartment

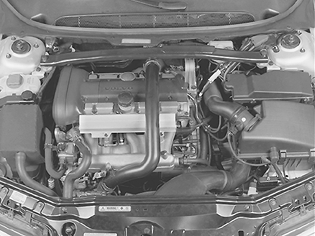

Fig 1: Engine Compartment Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the pipe screw together with new gaskets on the oil pressure pipe in the turbocharger (TC). Tighten
• the upper heat deflector plate. Tighten the screws
• the charge air pipe over the engine
• the cross stay between the suspension turrets
• the tie strap for the servo cable in the cross stay. Raise the vehicle. See: Jacking points, body .
