Installing The Turbocharger (TC) Control Valve

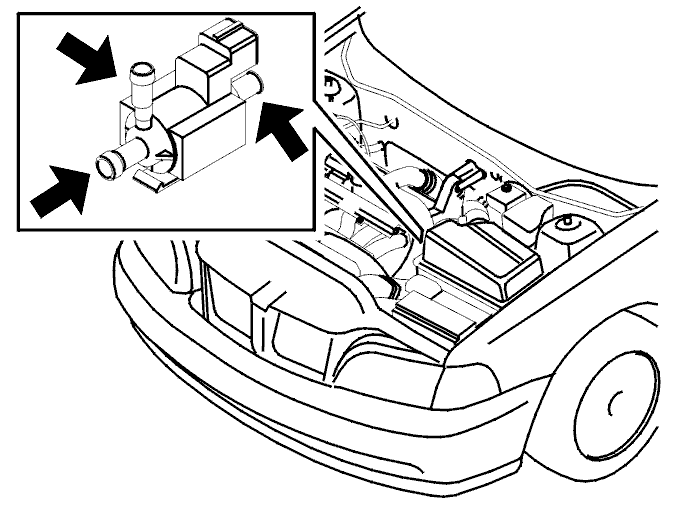

Fig 1: Identifying Turbocharger Control Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the hoses according to the marking on the control valve
• the connector on the valve
• the valve on the air cleaner (ACL) cover.
