Removing Components

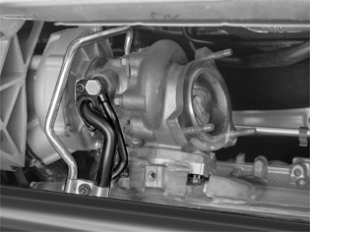

Fig 1: Identifying Turbocharger Oil Delivery Pipe And The Oil Return Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the clamp between the turbocharger oil delivery pipe and the oil return pipe.
• the screws at the oil return pipe connection to the turbo. Pull the pipe from the cylinder block. Discard the gasket.

Fig 2: Identifying Turbocharger Oil Delivery Pipe And The Oil Return Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the pipe screws at the connections for the coolant pipes to the turbo
• the pipe screws for the oil delivery pipe in the cylinder block
• the lower nuts, 2 pcs, for the turbocharger on the exhaust manifold side.

  HINT: Use rust solvent or similar

• the upper nuts at the turbocharger connection to the manifold.
