Removing Bevel Gear

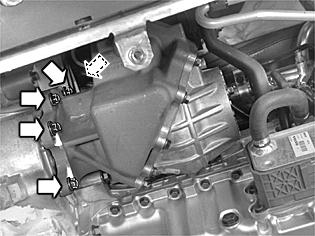

Fig 1: Angle Gear Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

To prevent oil leakage, position the bevel gear with the bleed hole upward.

Remove the screws, 5 pcs, for the bevel gear. Pull the bevel gear straight out. Then turn it during removal.
