Installing The Manifold/Gasket

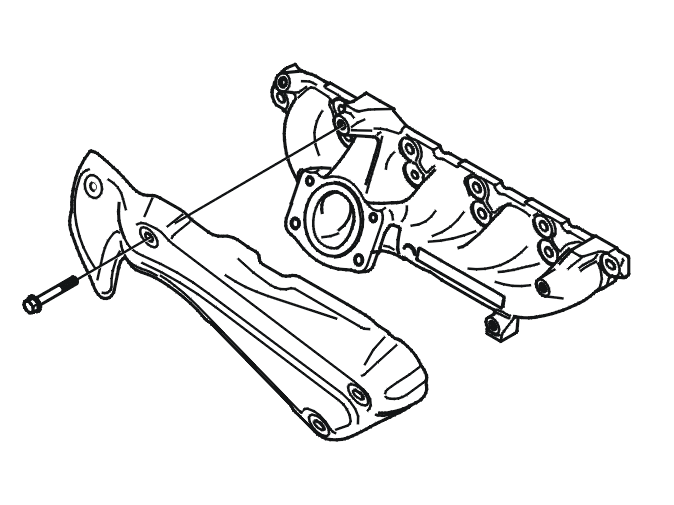

Fig 1: Identifying Inner Heat Shield And Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• new gaskets
• the manifold. Use new nuts at the manifold. Tighten.
• the inner heat shield.
