Removing The Rear Muffler

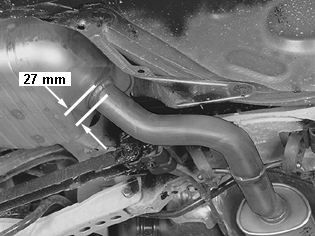

Fig 1: Identifying Exhaust Pipe Cutting Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measure 27 mm  from the muffler and along the pipe.

Mark and cut the pipe. Use pipe cutter 1158590 .

Remove the muffler.
