Installing The Vacuum Nipple

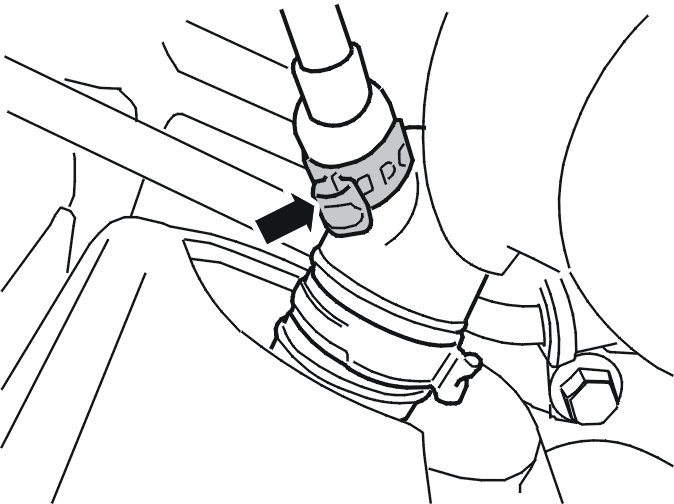

Fig 1: Locating Hose Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Wet the plastic hose on the new nipple. Use a soap solution. Press the hose through the insulation following the previous routing. Install the hose and nipple on the oil trap. Use a new clamp.

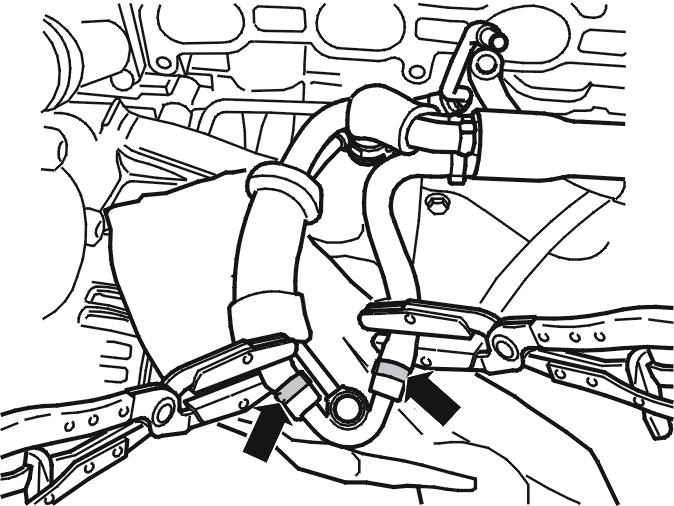

Fig 2: Hose Clips Installed On Engine Coolant Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the engine coolant hoses on the vacuum nipple. Use new clamps. Remove the hose clips.

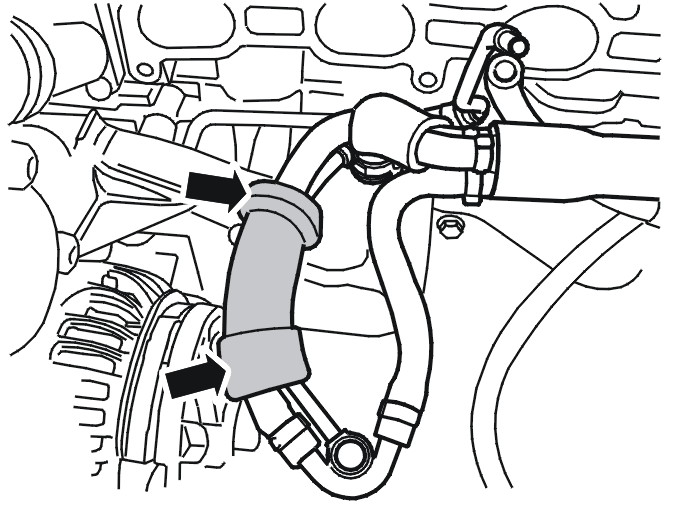

Fig 3: Identifying Insulation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold the insulation back into place. If the insulation breaks, apply tape over the crack.
