Replacing Gasket

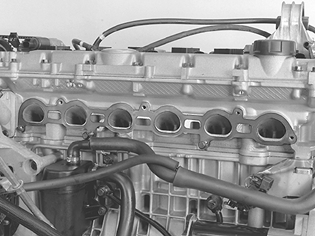

Fig 1: Intake Manifold Gasket
GLL108811Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the remaining screws and gasket.

Clean the gasket face.

Install new gasket  with the two center screws in the lower row.
