Removing The Intake Manifold, Upper Section

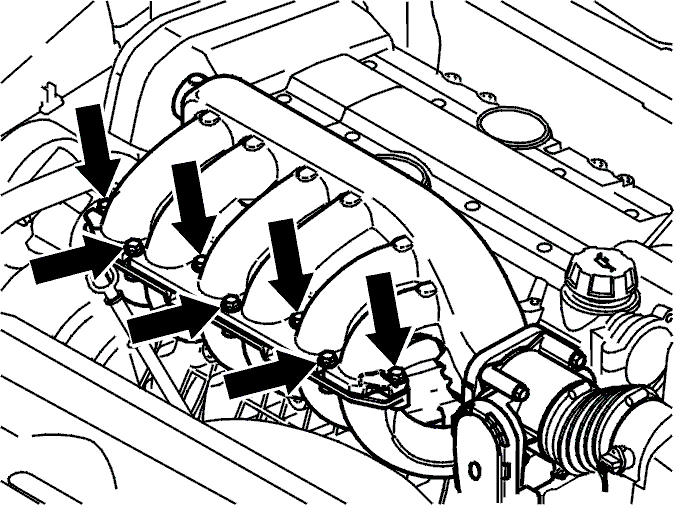

Fig 1: Intake Manifold Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw in the mating flange of the intake manifold
• the crankcase ventilation hose from the underneath of the upper section of the intake manifold.

When removing and installing the intake manifold:

Lift off the upper section of the intake manifold.

When replacing the gasket:

Turn the upper half of the intake manifold to one side.

Remove the gasket.

HINT: Cover the gasket face on the lower half of the intake manifold to prevent dirt getting in. Use broad tape.
