Removing The Fuel Rail
Separate the quick-release fuel line connector. See Fuel line, lock .
Use tool 9512666 .

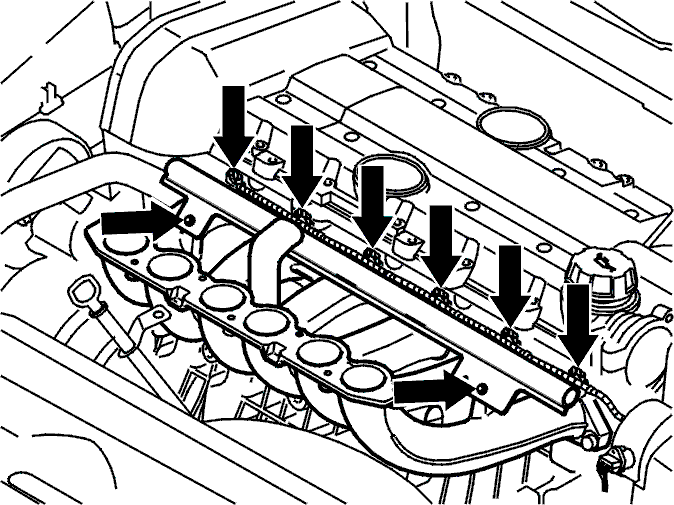

Remove:
- the screw securing the mounting for the dip stick pipe to the intake manifold
- the connectors for the injectors
- the screws for the fuel rail.
Spray universal oil or similar around the injector terminals on the intake manifold.
Gently work the fuel rail and injectors loose.
Put the fuel rail to one side.
NOTE:
Handle the injector valves carefully to avoid damaging the injector valves' nozzles with needles.
