Separating The Exhaust System

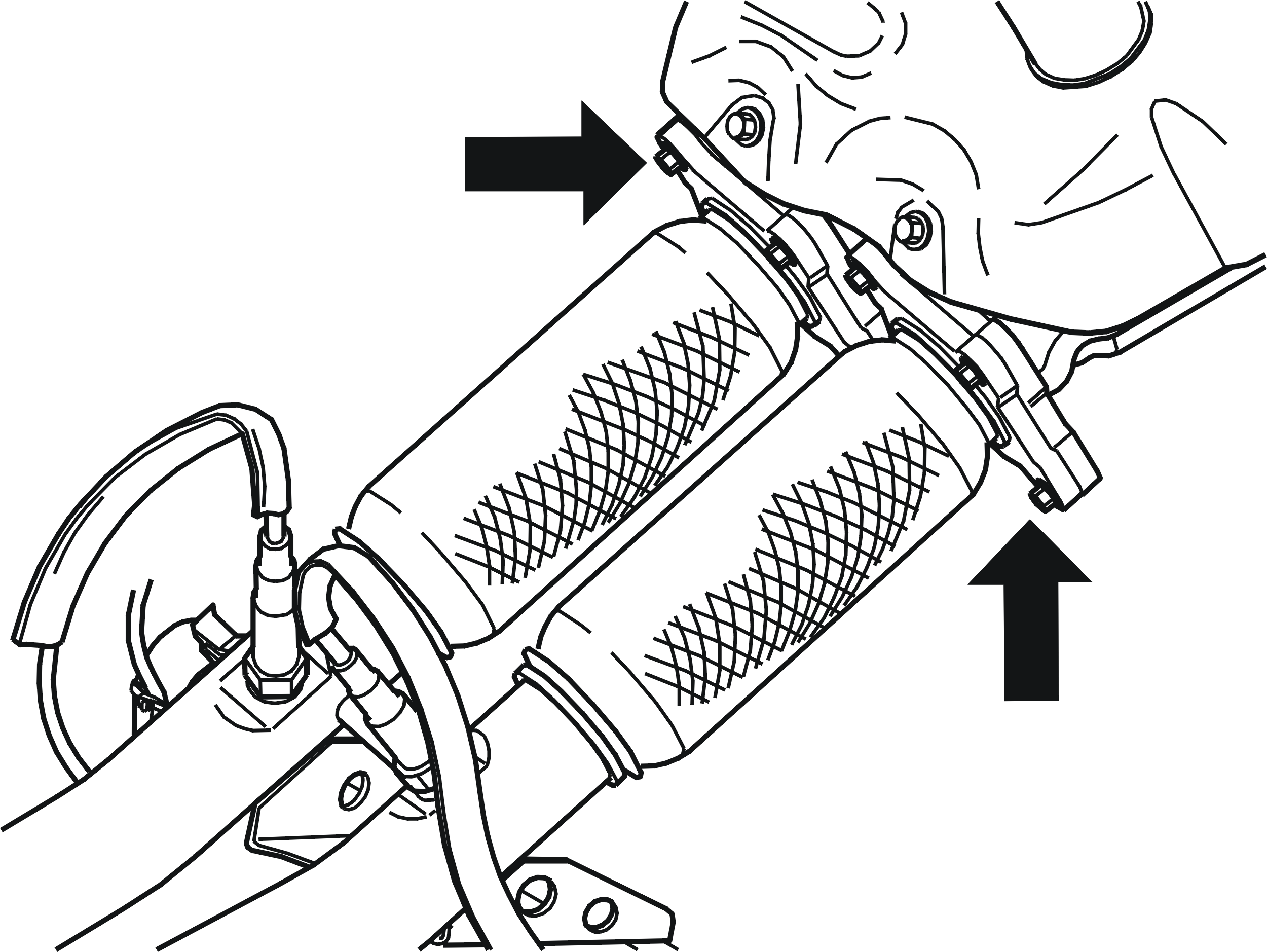

Fig 1: Exhaust Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the lower engine cover
• the nuts where the manifold and front exhaust system separate
• the screws for the front SIPS member.

Disconnect the brake pipe from the clips on the SIPS member.

Release the exhaust system from the manifold.

Leave the exhaust system resting on the rear SIPS members.
