Removing The Manifold

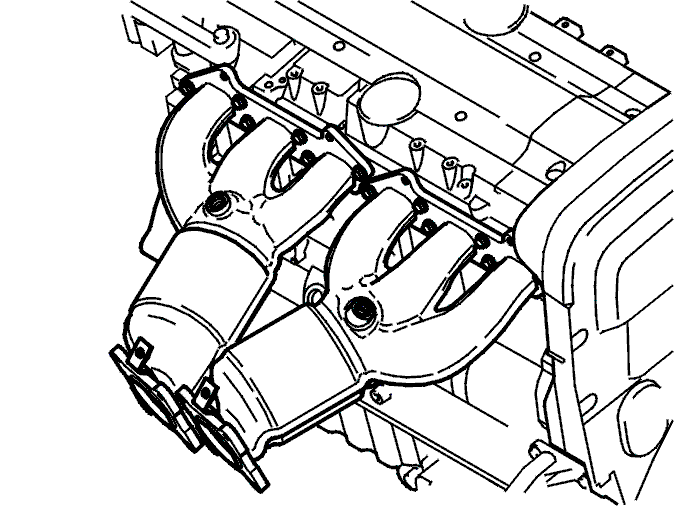

Fig 1: Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the heat deflector plate over the manifold.

NOTE:

Clean and spray the exposed threads using rustproofing agent before beginning removal.

Remove the manifold mounting nuts on the engine.

Pull off and lift up the manifold.
