Installing The Exhaust System

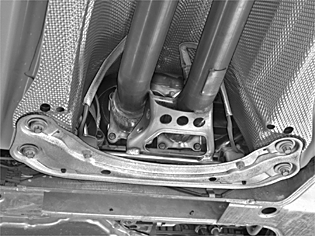

Fig 1: Exhaust System
GLL125970Courtesy of VOLVO CARS OF NORTH AMERICA.

Install new  gaskets on the manifold flanges.

Connect the front exhaust pipe to the manifolds.

Lubricate the threads. Use new  nuts. Tighten to 25 Nm  .

Press the brake pipe into the clip on the front SIPS member.

Press up and install the front SIPS member. Tighten to 25 Nm  .

Install the lower engine cover.
