Transferring Components When Replacing The Intake Manifold

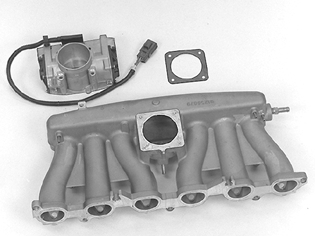

Fig 1: Intake Manifold And Gasket

GLL125912

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer the throttle body using a new gasket . Tighten to 10 Nm .
