Removing The Intake Manifold/Gasket: Notes

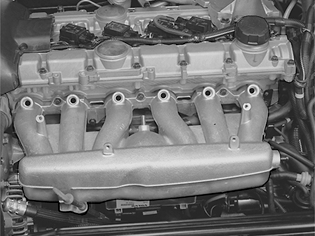

Fig 1: Identifying Intake Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the upper screws.

Remove the outer screws of the lower row.

Undo the remaining screws.

Lift up and remove the intake manifold.

Remove the remaining screws and the gasket.
