Install Turbo 2 / Manifold

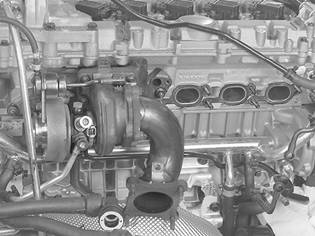

Fig 1: Turbocharger Manifold Gasket
GLL125924Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the stud threads. Use paste, P/N: 116 1408  .

Lower and press the turbocharger (TC) / manifold into place.

NOTE:

Ensure that the oil pressure pipe locates at the same time.

Install the washers and new nuts  . Tighten to 25 Nm  .
