Install Turbo 1 / Manifold

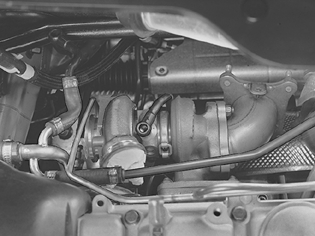

Fig 1: Turbocharger Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the stud threads with paste, P/N: 116 1408  .

Lower and press the turbocharger (TC) / manifold into place.

Install the washers and new nuts  . Tighten to 25 Nm  .
