Transferring Parts When Replacing Inlet Pipe

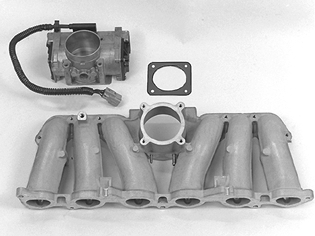

Fig 1: Remove/Install Components Inlet Pipe

GLL125916

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer

throttle module (ETM). Use new gasket . Tighten with 10 Nm
