Installing The Lower Inlet Pipe

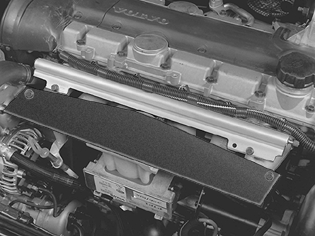

Fig 1: Removing The Lower Inlet Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install guards 9995723 .

Lower the inlet over the three screws.

Install the remaining screws.

Tighten all the screws with 20 Nm  .

Install both vacuum hoses according to earlier marking.

Fig 2: Fuel Line's Quick-Coupling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the fuel rail with new screws  . Tighten with 10 Nm
• the fuel lines quick-coupling
  NOTE:

  Check that the coupling is installed correctly.

• The connectors for the injectors.
