Replacing The Electronic Throttle Module (ETM)

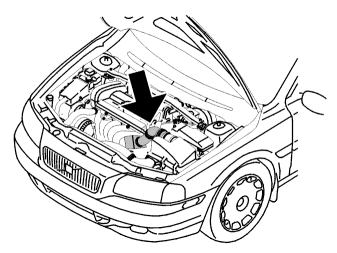

Fig 1: Identifying Air Intake Pipe
GLL103023Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the battery negative lead.

Remove the intake pipe between the front cover plate and the air cleaner (ACL).

Disconnect the intake manifold between the air cleaner (ACL) and the throttle body (TB) and put to one side.

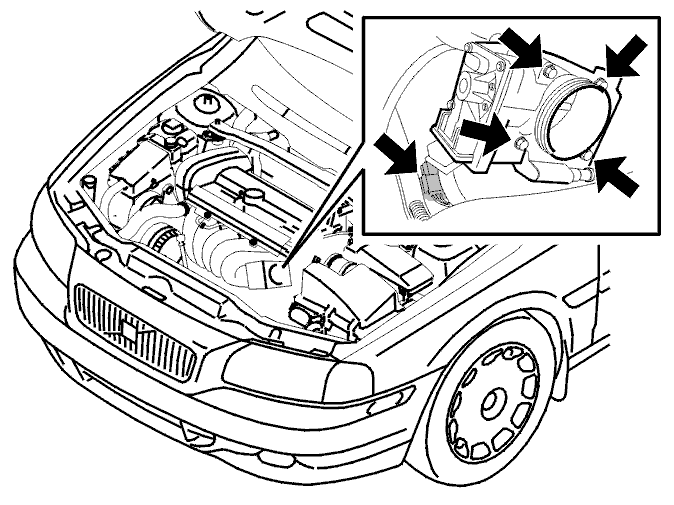

Fig 2: Identifying Throttle Body, Screws And Connector
GLL103024Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the throttle body (TB) and place it to one side.

Clean the gasket face.

Remove the starter motor and put to one side.

Disconnect the throttle body (TB) connector.
