Crankcase Ventilation And Electronic Throttle Module (ETM), Cleaning: Installing: Install

Fig 1: Identifying Throttle Body And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the throttle body. Use a new gasket
• the 4 x screws for the throttle body.

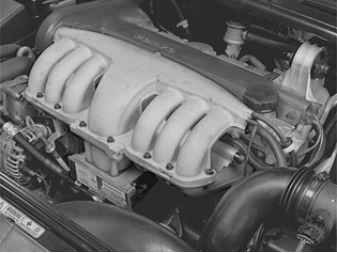

Fig 2: Identifying Gasket And Upper Section Of Intake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove 9995723

Install:

• a new gasket
• upper intake manifold section. Tighten the screws from the outside alternately.

Fig 3: Identifying Dipstick Tube

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the intake manifold between the throttle body and the air cleaner (ACL).

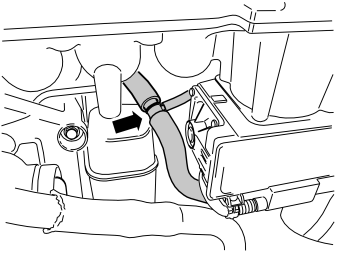

Fig 4: Identifying Hoses And T-Nipple

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the thick hoses to the T-nipple
  NOTE:

  The T-nipple's thickest connector to the flame trap.

• the dipstick tube

Connect the negative battery lead. Battery, disconnecting
