If the car has lock brackets

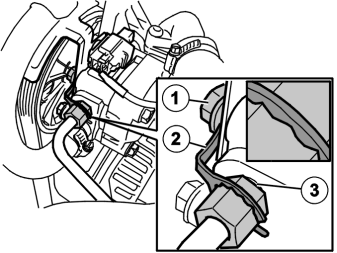

Fig 1: Identifying Lock Bracket And Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the lock bracket (2) by removing the screw (1)
• the pipe nipple at the pump.

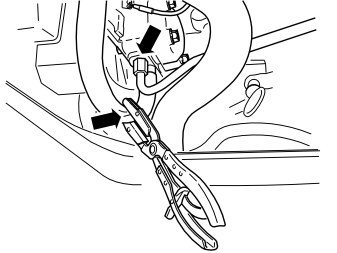

Fig 2: Identifying Power Steering Pump Hose With Clamp And Pressure Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place paper towels under the power steering pump to absorb any power steering pump fluid.

Install a hose clamp on the power steering pump hose

Remove the pressure line from the power steering pump. Plug the power steering pump and pipe using rubber plugs.

Disconnect the connector from the belt cover above the power steering pump.

Fig 3: Identifying Power Steering Pump And Mounting Screws Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the power steering pump's 3 x mounting screws through the pulley holes.

Remove:

• the servo hoses and the engine coolant hoses from their holders/clips. Remove the tie strap for the servo hose by the suspension turret
• the servo reservoir from its mounting on the expansion tank for coolant
• the connector and place the servo reservoir on the engine.

Place the power steering pump on the engine.
