Starting System - Removal, Replacement And Installation
>>
Start Operation (1999-2006)
>>
Starter Switch, Replacing
>>
Removal
>>
Start Switch
Start Switch

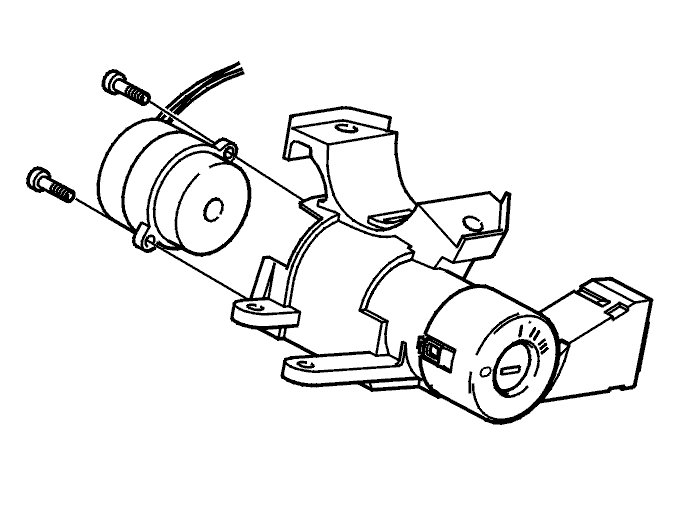

Fig 1: Identifying Start Switch
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the steering column covers
Disconnect the connector
Remove the 2 screws
Remove the starter switch.
