Removing the remote starter unit

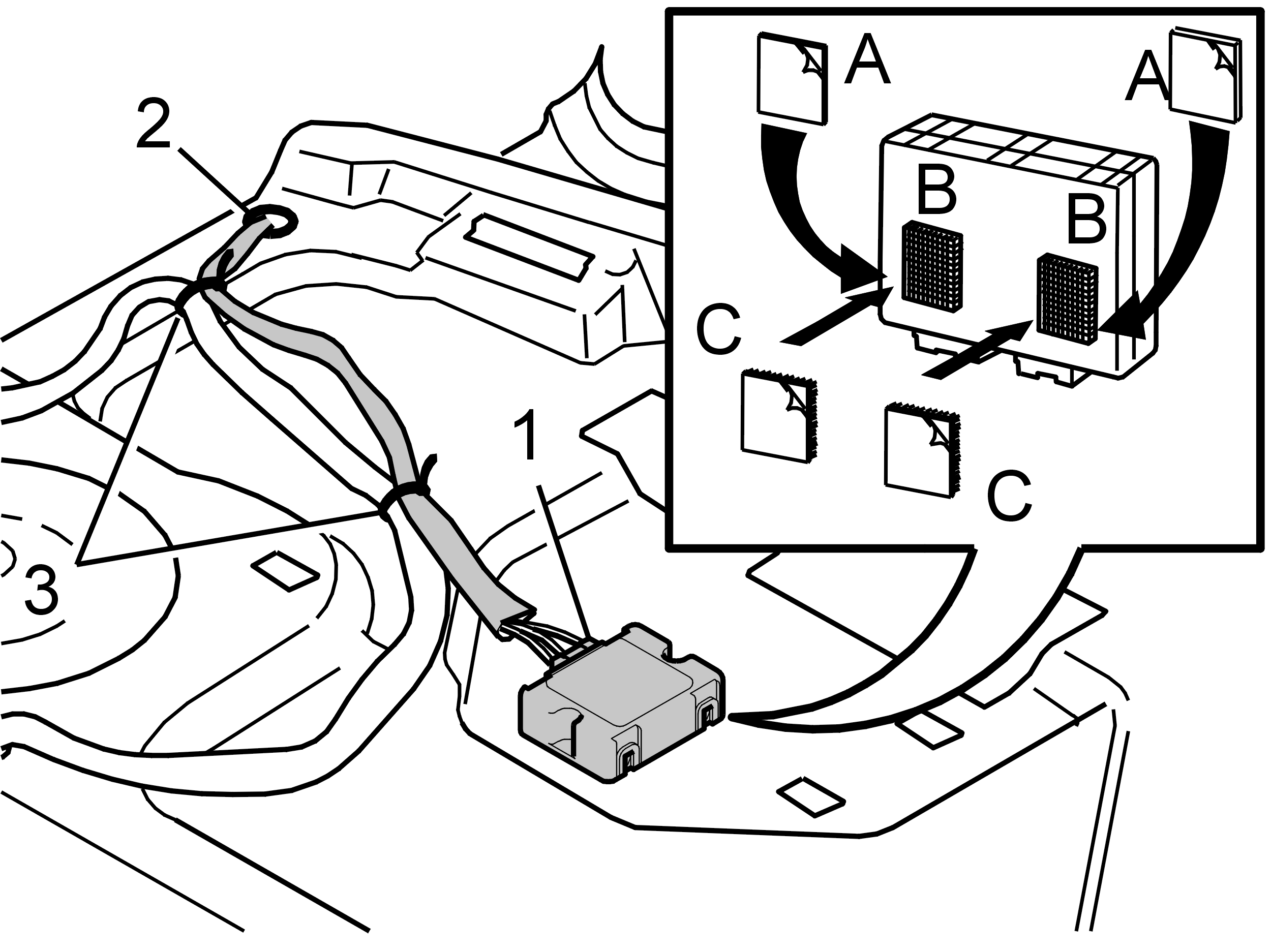

Fig 1: Identifying Remote Starter Unit
GLL105269Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the remote starter unit by pulling it off the Velcro strips.

Disconnect the connector.

Replace the remote starter unit.
