Valve Guides

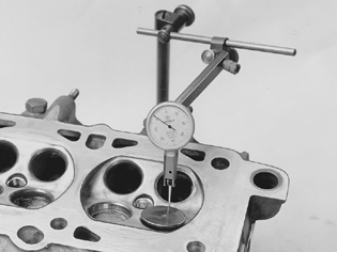

Fig 1: Identifying Measurement Of Wear In Valve Guides Using A Dial Indicator And Magnetic Holder
GLL108933Courtesy of VOLVO CARS OF NORTH AMERICA.
Clearance between new components:

Inlet/Exhaust........0.03-0.06 mm
Maximum play for used components:

Inlet/Exhaust........0.15 mm
