Installing The Screws For The Transmission And Engine

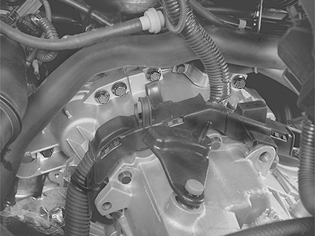

Fig 1: Gearbox Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the vehicle

Remove the lifting beam from the engine.

Install:

• the remaining screws for the transmission and starter motor
• the 2 screws for the starter motor. Tighten
• the screw for the ignition position sensor. Tighten.
