Installing The Front Propeller Shaft (Applies to AWD)

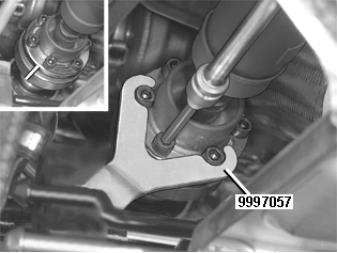

Fig 1: Identifying Front Propeller Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check carefully that the mating surfaces on the propeller shaft and flange are clean.

Use new screws when tightening the propeller shaft CV joint.

Tighten, see: Tightening torque .
