Installing The Bracket And Lever For The Transmission

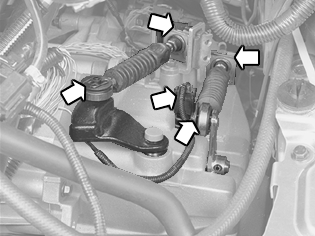

Fig 1: Identifying Transmission Bracket And Lever
GLL109229Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket and screws. Tighten.

Tap in the pin so that it locks the lever.

Install the transmission cables on the transmission and the levers.

NOTE:

The yellow marked cable must be outermost.
