Installing The Bevel Gear

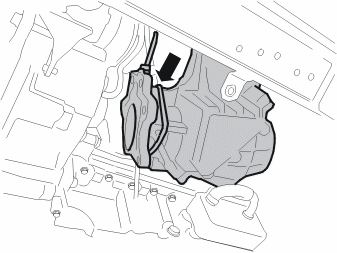

Fig 1: Bevel Gear Hung Up With A Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

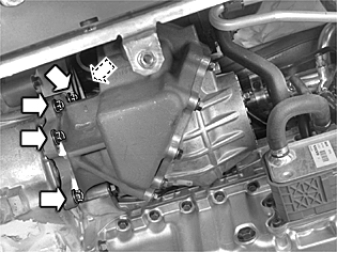

Fig 2: Bevel Gear Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tie strap.

Install the bevel gear.

Align the propeller shaft on the bevel gear and rotate the bevel gear into position. Install new  screws. Tighten the screws crosswise lightly.

Tighten. Tightening torque .
