Installing And Tightening Screws For The Transmission

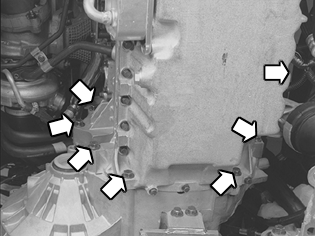

Fig 1: Gearbox Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install all 7 screws securing the transmission to the engine.

First tighten alternately and crosswise to light  contact.

At the same time, check that the whole of the transmission is in contact with the engine.

Then tighten the M10 transmission / engine screws crosswise.

Remove the fixture from the transmission.

Lower the vehicle
