Fitting The Sub-Frame To The Body

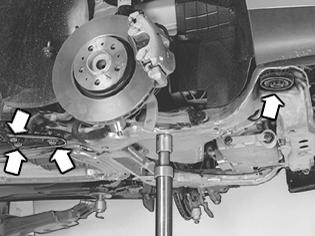

Fig 1: Identifying Sub-Frame And Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Use new screws (4 x M14). Lubricate the screw threads. Make sure that the screws for the steering gear locate in the sub-frame.

Start on the left-hand side.

Raise the subframe with the mobile jack 9985972 .

Locate the steering gear screws in the subframe.

Install the subframe and support bracket screws, start on the left-hand side followed by the right. Tighten as per Tightening torque .

Move the mobile jack to the right-hand side. Remove the existing screws and repeat the operation.
