Adjusting The Position Of The Transmission And Engine

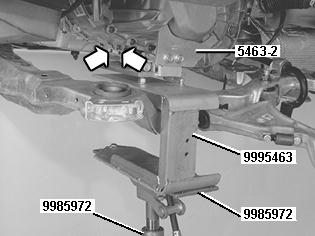

Fig 1: Adjusting Height And Angle With Mobile Jack And Transmission Fixture

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust height and angle with the mobile jack and the transmission fixture.

Locate the transmission on the engine.

Ensure that the transmission goes straight in, in relation to the engine, and that no deviation occurs in the clutch driven plate center.
