Cars With Engine Block Heaters (Option)

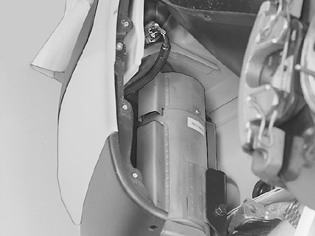

Fig 1: Engine Block Heater Connector
GLL108998Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the heater connector at the vehicle wiring.

Ensure that the connector and wiring are secured at the body.

Rivet the fender liner to the fender edge.

Check that the quick-release fuel line connector is secure at the engine block heater.
