Removing The Lower Torque Rod

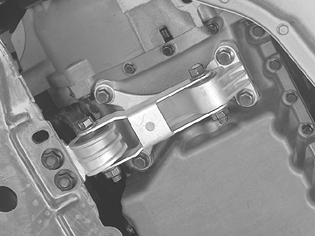

Fig 1: Removing/Installing Lower Torque Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car.

Remove

• the splash guard under the engine
• the torque control arm
• engine bracket
• sub-frame bracket.
