Removing Right Engine Pad

Fig 1: Fender Liner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car.

Remove

• right front wheel.
• both plastic nuts and reinforcement panel holding cover in right fender liner. Bend fender liner out of the way.
• the crankshaft vibration damper.
• four screws for right engine pad.

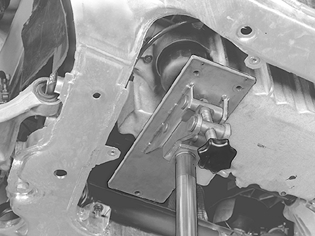

Fig 2: Positioning Mobile Jack With Universal Plate 999 5972 Under Oil Pan On Right-Hand Side Of Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a mobile jack with universal plate 9995972 under oil pan on right-hand side of engine.

Check that the plate does not catch in the sub-frame.

Carefully lift engine slightly so that the engine pad can be removed.
