Removing Intake Manifold

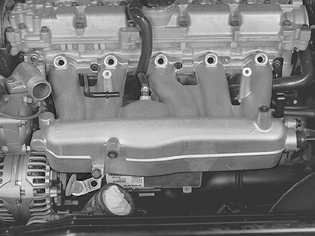

Fig 1: Identifying Intake Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• The EVAP hose from the intake manifold
• the by-pass valve vacuum hose. Disconnect the connector for the electronic throttle module (ETM)
• the upper row of screws holding the intake manifold to the cylinder head. Slacken off the lower screws. Lift up the intake manifold. Remove the pipe screw for the water heated crankcase ventilation underneath the intake manifold
• the pipe screw for the crankcase ventilation from the underside of the intake manifold.

Lift up and remove the intake manifold.
