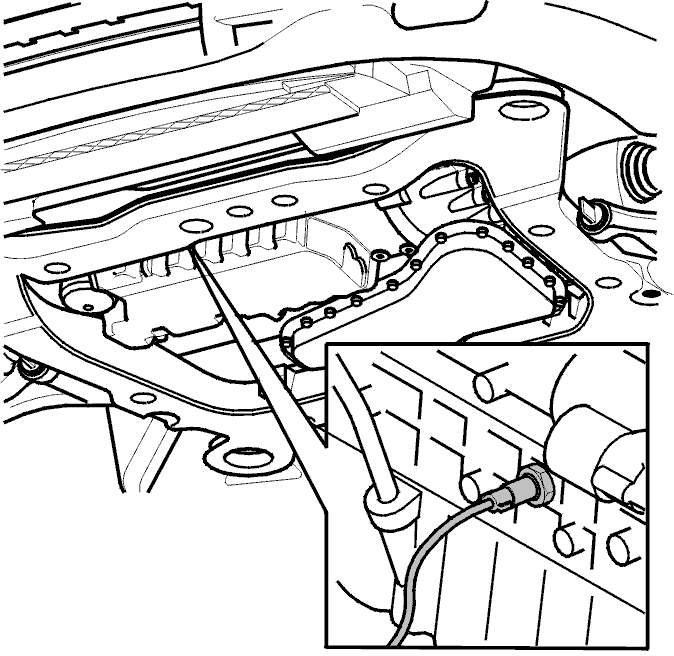

Checking The Oil Pressure Sensor
NOTE:
When checking the oil level and oil pressure, the engine should be at normal operating temperature which corresponds to 15 minutes normal driving (100°C / 212°F). If the oil quality and type or oil filter condition cannot be determined, replace the oil and filter.
Remove
- the air baffle on both sides
- the center air baffle under the engine.
Check
- the cable and connectors
- type and function. Try a new sensor
- any cable faults between sensor and warning lamp.
NOTE:
Use a new gasket when the new sensor is installed.
