EVAP canister shut-off valve, replacing: Removing

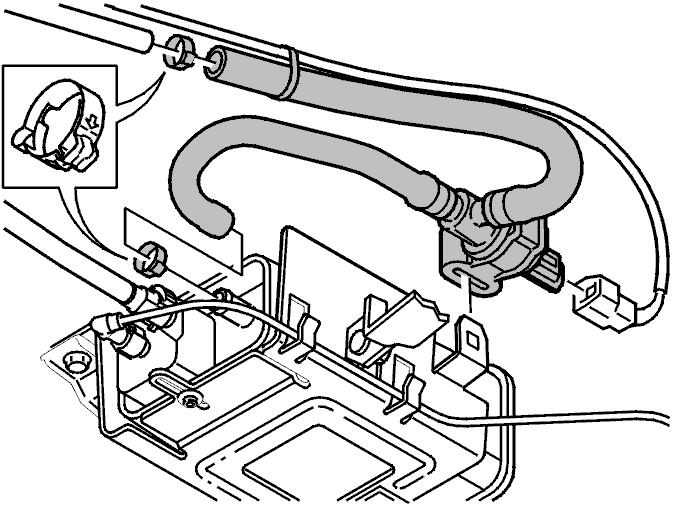

Fig 1: Identifying EVAP Canister Shut-Off Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

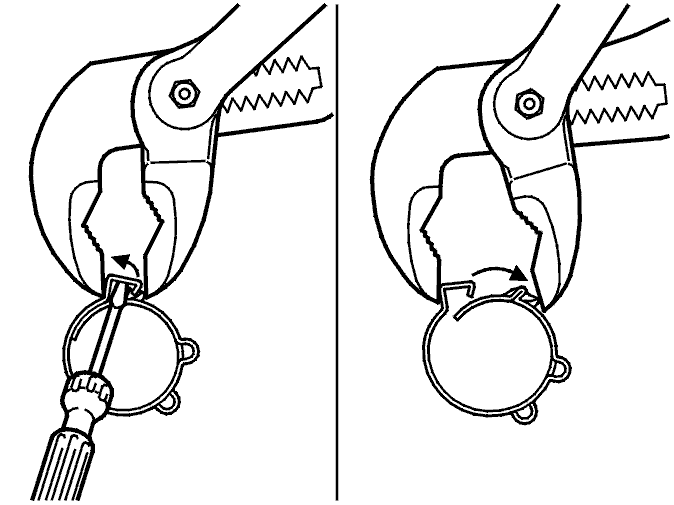

Fig 2: Identifying Clamp Being Squeezed By Pipe Wrench

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector
Removing the clamp:
- squeeze the clamp with a pipe wrench. Hold in place
- pry apart with a small screwdriver.
  NOTE: These are reusable.
Remove the clamps (2) at the EVAP canister and rear axle joint, and one tie strap.
Removing the clamp:
- squeeze the clamp with a pipe wrench. Hold in place
- pry apart with a small screwdriver.
  NOTE: These are reusable.
Disconnect hoses.
Remove the rubber mounting from the bracket.
