Installing the canister purge (CP) valve

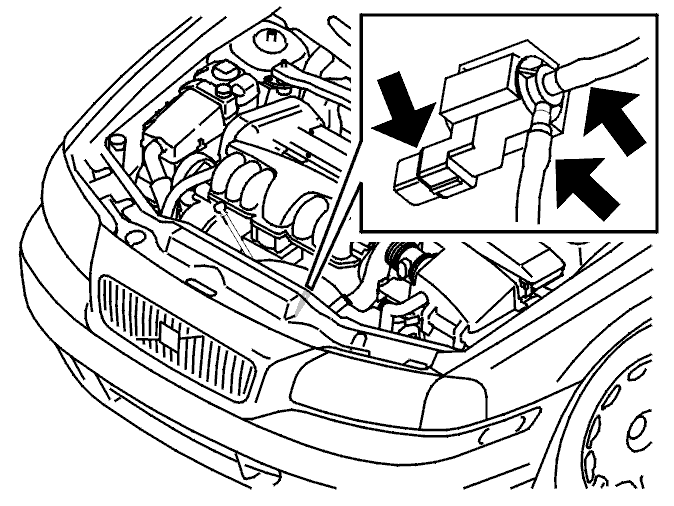

Fig 1: Identifying Canister Purge (CP) Valve Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the new canister purge (CP) valve
• the hoses according to the markings
• The canister purge (CP) valve on the bracket at the fan shroud.

  Connect the canister purge (CP) valve connectors

Fig 2: Identifying Intake Manifold Between Front Cover Plate & Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the intake manifold between the front cover plate and the air cleaner (ACL) housing.
