Checking the cable

Check the wiring between the sun roof switch and the roof lamp module. Check for a short-circuit to supply voltage.

Other information:

• For further information about signals and other values, see Signal specification
• See Checking wiring and terminals .

Fig 1: Identifying Voltage Display

Courtesy of VOLVO CARS OF NORTH AMERICA.

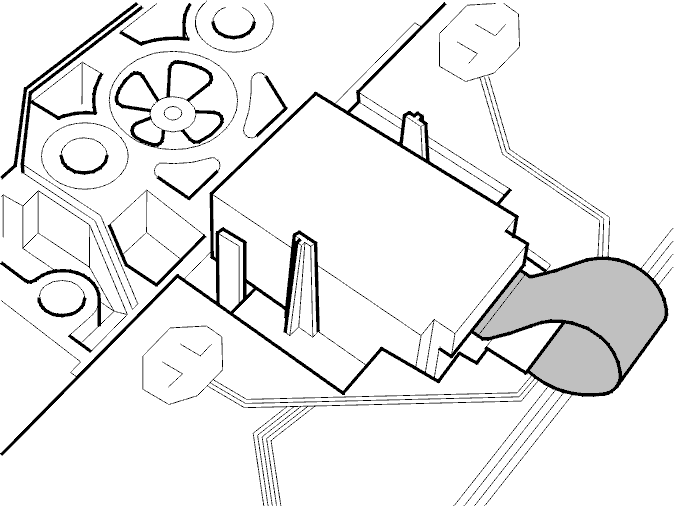

Fig 2: Identifying Roof Lamp Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Replacing the component
