Checking cable and component

Check the signal cable between rear electronic module (REM) connector terminal #42 (#F2) and terminal #1 on the lock mechanism connector. Check for a short-circuit to supply voltage. Check for an open-circuit.

Remedy as necessary.

Other information

• See Connecting the breakout box
• See Signal specification
• Disconnecting the rear electronic module (REM):
  • For -2004, see: Integrated relay/fusebox cargo compartment/Rear electronic module (REM), replacing
  • For 2005-, see: Rear electronic module (REM), replacing .
• See Checking wiring and terminals

Fig 1: Checking Wiring & Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

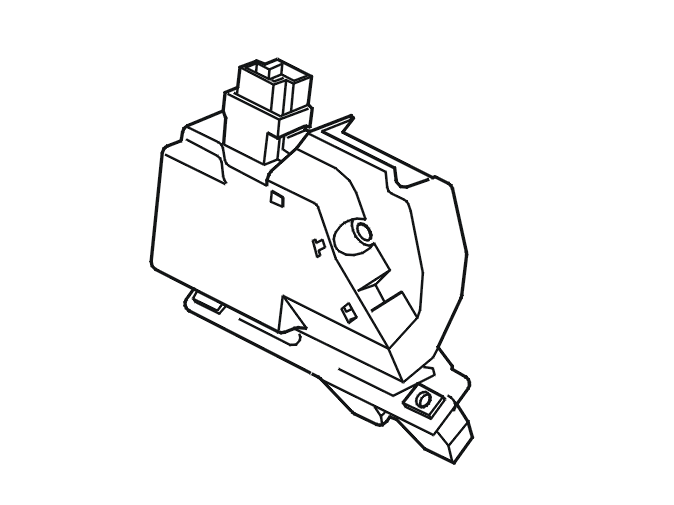

Fig 2: Identifying Tailgate Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
