Checking components and wiring
Check the connections on the parking assistance module (PAM) and sensor 2 (inner left). Check for contact resistance and oxidation. Also check intermediate connector.

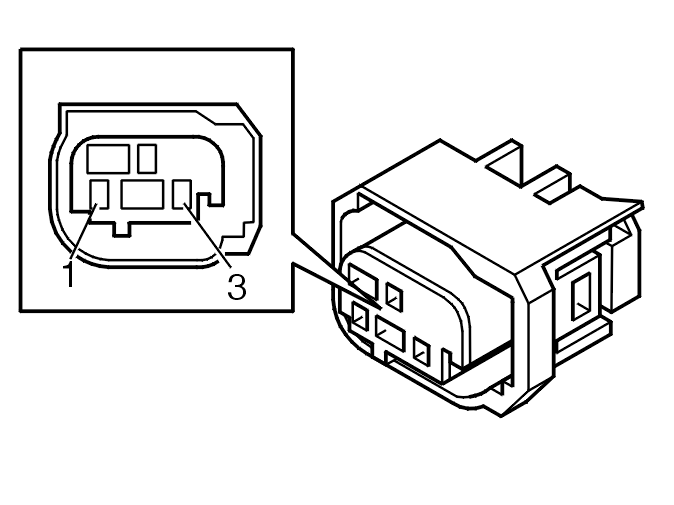

Check the power supply cable between the connector in the parking assistance module (PAM) terminal #6 and the connector for sensor #1. Check for a short-circuit to ground. Check for an open-circuit.
Check the signal ground cable between the connector in the parking assistance module (PAM) terminal #7 and the connector for sensor #3. Check for a short-circuit to supply voltage. Check for an open-circuit.
Check the signal cable between the connector in the parking assistance module (PAM) terminal #3 and the connector for sensor #2. Check for an open-circuit. Check for a short-circuit to supply voltage. Check for a short-circuit to ground.
Try a new sensor if no fault is found.
Remedy as necessary.
Other information:
- To access or replace the parking assistance module (PAM), see Parking assistance module (PAM), replacing
- To access or replace the back-up warning sensor, see Parking assistance sensor rear, replacing
- To fault-trace the wiring and terminals, see Checking wiring and terminals .
- Continue
Refer to Verification
