Checking the control module for short-circuits

Measure the resistance between terminal #2 and ground when the relay driver is active. The resistance should be high when the relay driver is active. Replace the control module if the resistance is low.

Other information:

• To access or replace the central electronic module (CEM), see Central electronic module (CEM), replacing .

Fig 1: Identifying Ohm Meter

Courtesy of VOLVO CARS OF NORTH AMERICA.

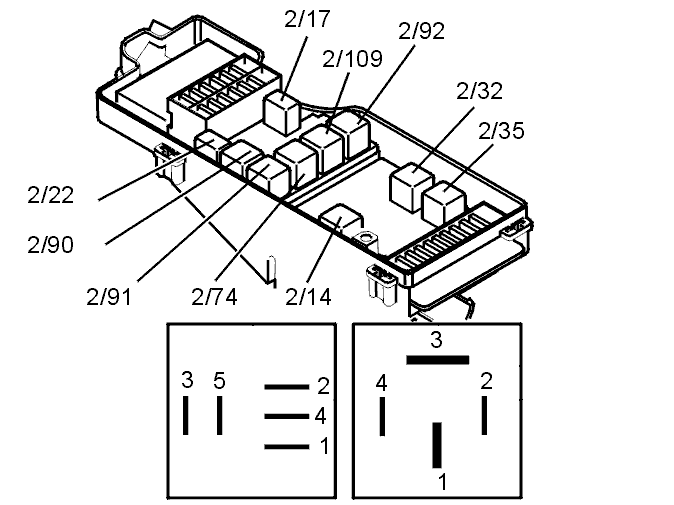

Fig 2: Identifying Relays And Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
