Removing The Trim Panel

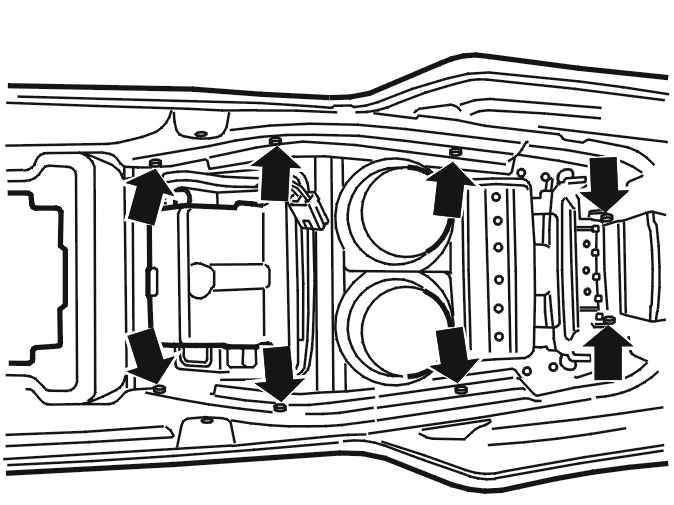

Fig 1: Identifying Trim Panel Screws
GLL111623Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the 8 screws.

Remove the panel.
