Turning The Center Console

Turn the center console a quarter of a turn.

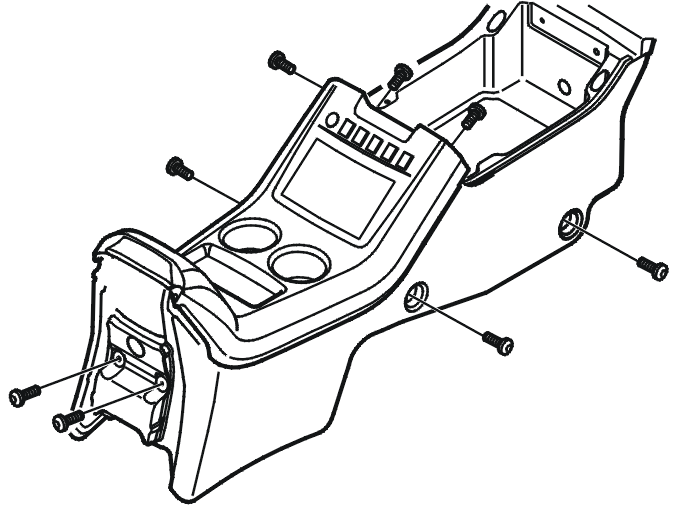

Fig 1: Identifying Center Console Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the mountings for the 4 screws on the side
• the mountings for the 2 screws on the end
• the mountings for the 2 screws on the compartment.

Fig 2: Identifying Locking Washers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 2 locking washers on the gas strut at the armrest
• the carphone holder / fax
• the 4 screws
• the cover and bottom of the center console locker.

Lift out the center console locker
