Replacing The Seat Rail: Removal

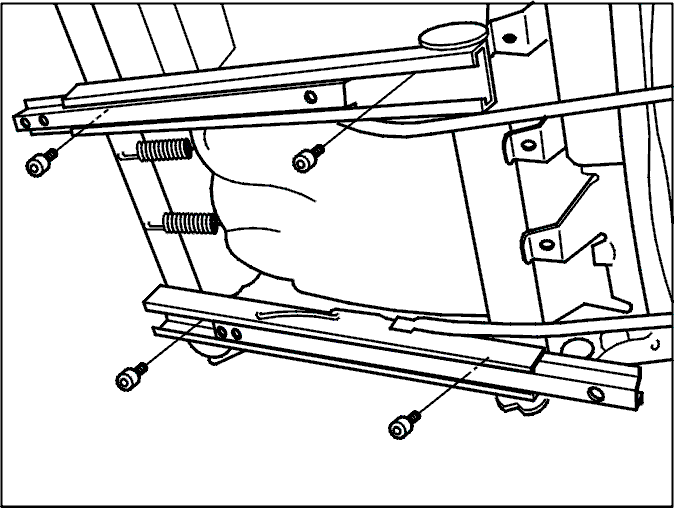

Fig 1: Identifying Seat Rail Screws

GLL119199

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the seat. See Replacing the seat
the 4 screws.
