Replacing The In / Out Switch For The Seat / Turn Table: Removal

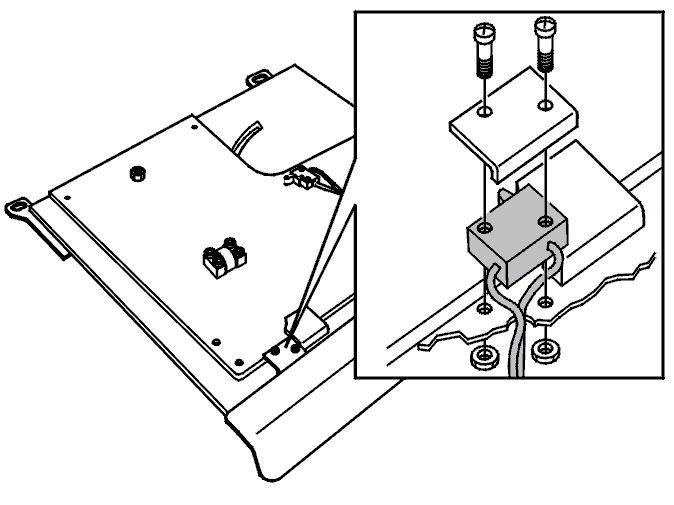

Fig 1: Identifying Seat Turn Table Switch, Screws And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the turn table. See Replacing The Turn Table
• Remove the nuts for the switch
• Cut off the cable for the switch
• Lift out the switch with the screws and cover.
