Replacing The Hand Control On Turning Seats: Removal

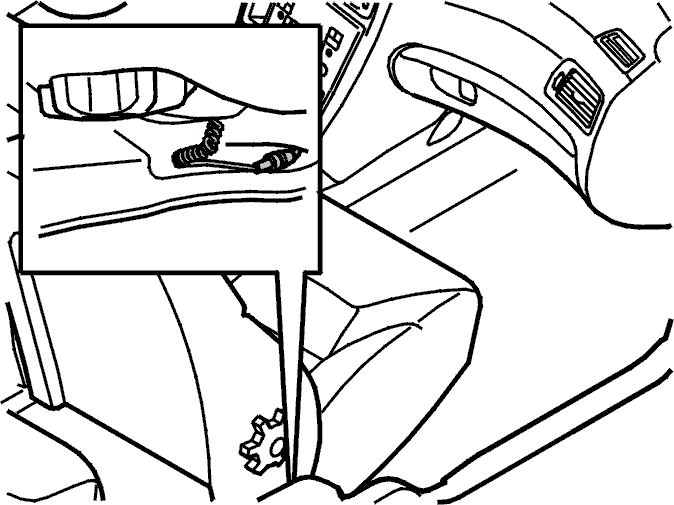

Fig 1: Identifying Hand Control

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off
• Remove the sill trim panel. See The front sill trim panel
• Push the carpet at the B-post and the front sill to one side
• Cut off the tie strap
• Remove the DIN connector from the butyl tape
• Remove the hand control and the cable.

Fig 2: Identifying Hand Control And Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.
