Fault-tracing information

Condition

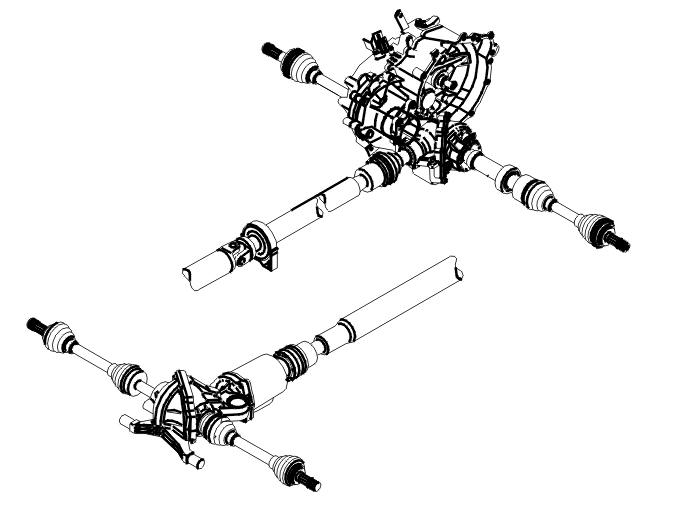

Fig 1: View Of Drive Shafts And Propeller Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the check by raising the car so the wheels hang freely. Drive carefully using a suitable gear. Lightly apply the hand brake during the check.

Possible Source

• The coupling sleeve between the transmission and the bevel gear is faulty
• Faulty bevel gear
• Faulty viscous coupling
• Faulty rear axle
• Rear drive shaft(s) is/are faulty.

Fault symptom[s]

• The rear wheels are not driven
• No four wheel drive.
